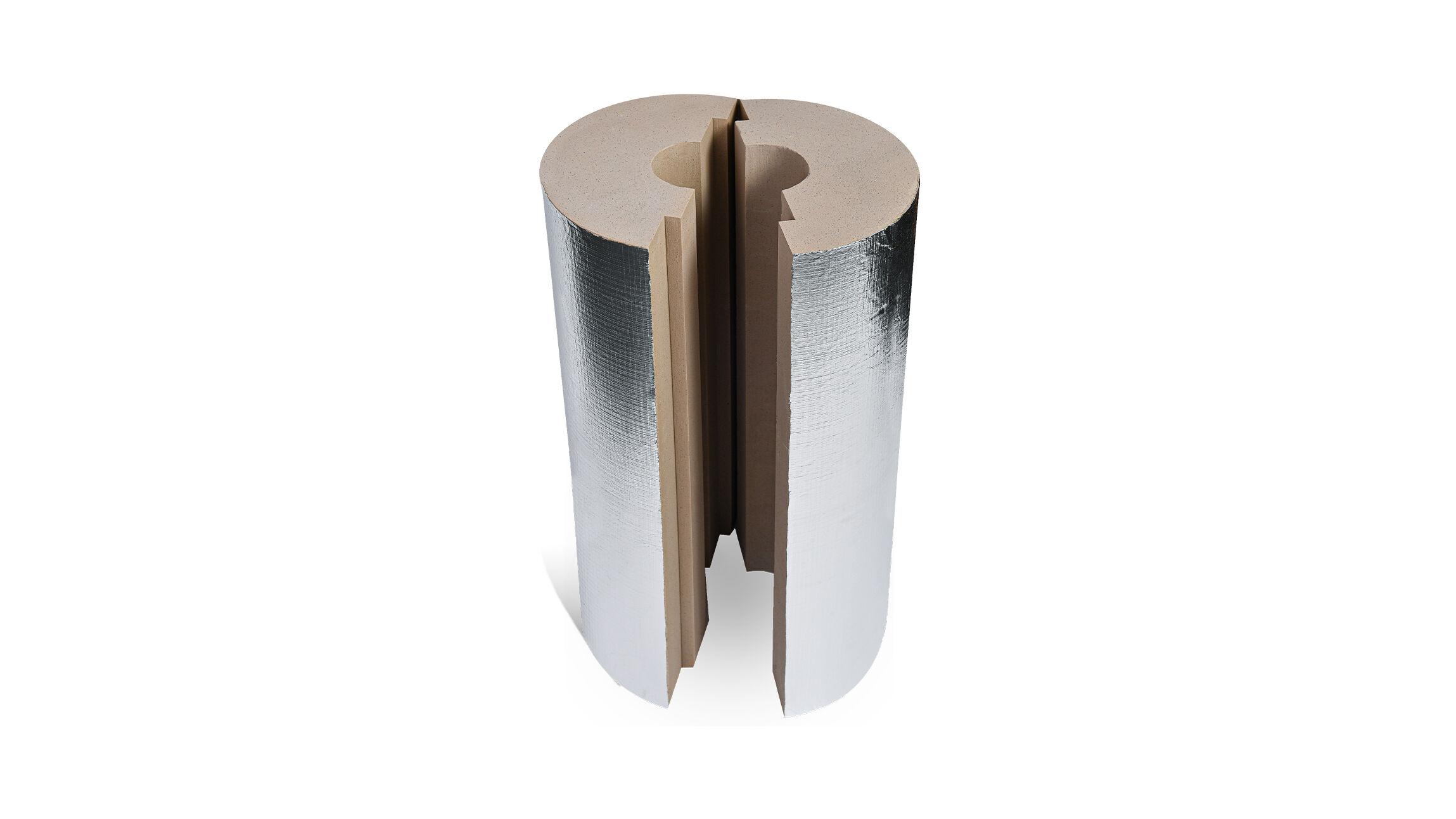

WILLFLEX^® 022 Pipe Shells

Product description

WILLFLEX^® 022 pipe shells based on phenolic resin offer optimum insulation in the area of heat and cold insulation. The pipe shell system has a very low thermal conductivity with λ values of just 0.025 to 0.028 W/(m-K). This allows the lowest possible insulation thicknesses with particularly effective thermal insulation - and thus allows up to 40% of the insulation thickness to be saved compared to conventional insulation materials such as mineral wool when insulating in accordance with the strict German "EnEv" legislation (Energy Saving Ordinance).
Even with EnEv 200%, the pipe shell insulation can always be installed in a single layer, making it particularly easy to install. WILLFLEX® 022 is also very light, with a density of just 40 kg/m³. Together with the high fitting accuracy of the pipe shells and the quick and easy installation, the system proves to be an economically viable alternative to conventional insulation materials.

- economical: space-saving solution thanks to low insulation thickness with λ values of 0.025 to 0.028 W/(m-K)
- precise fit: thanks to prefabrication of the required dimensions according to customer requirements
- fast: thanks to simple installation and very low weight
- universal: available for Fe and Cu pipes between DN 6 and DN 150 - special sizes on request

Download:

technical data sheet​​​​​​
