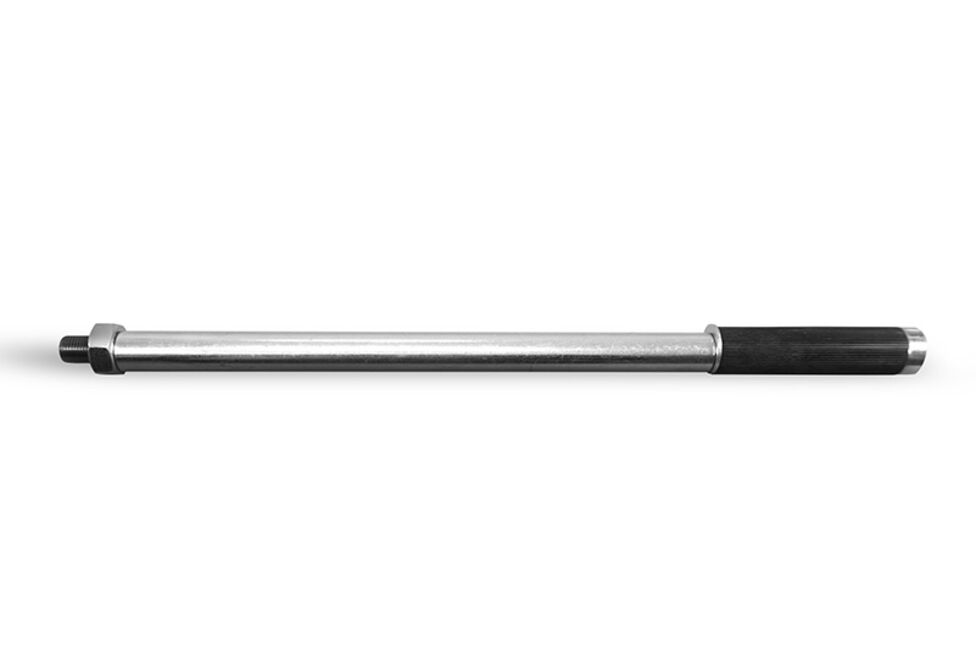

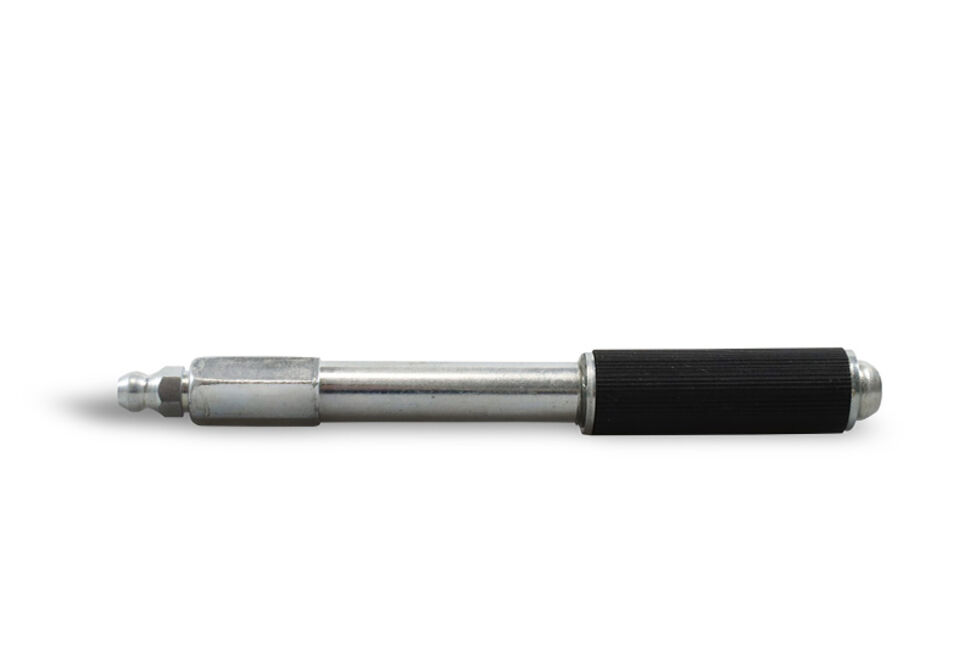

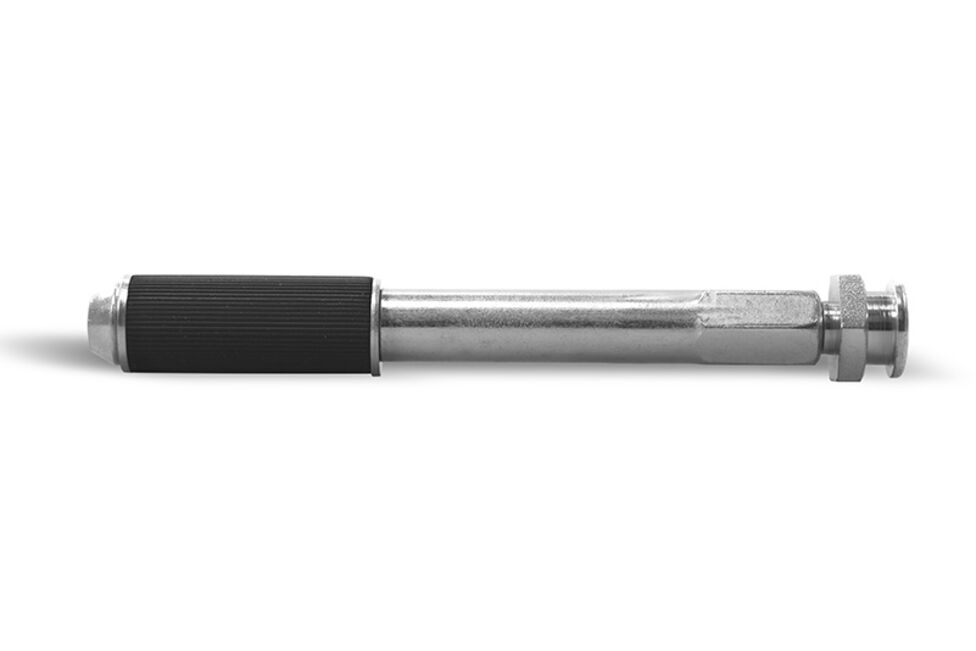

Steel packer
Product description
For the injection of polyurethane and epoxy resins, used for surface injection in brick masonry and crack injection in reinforced concrete structures.
Additionally, it includes the injection of acrylate gels for curtain and surface injections, the creation of horizontal barriers in masonry, crack injections in reinforced concrete, and the refurbishment of dilatation joints.
Units
| Diameter / Length | Version | Średnica / długość | Wersja | Artikelbezeichnung |
|---|---|---|---|---|
| 18 x 300 mm, pressure element 240 mm | pressure rubber 40 mm, M 10 x 1 ET, free passage Ø 4 mm | 18 x 300 mm, część dociskowa 240 mm | uszczelka dociskowa 40 mm, gwint M10x1 ET, światło Ø4 mm | Steel packer with gel-flat head nipple |
| 10 x 120 mm | with conical head nipple, pressure element 70 mm, pressure rubber 40 mm, HP-conical head nipple M 6, check valve | z końcówką stożkową, element dociskowy 70 mm, uszczelka gumowa 40 mm, stożkowa końcówka HP M6, zawór zwrotny | 1 Day packer | |
| 18 x 170 mm, pressure element 110 mm | pressure rubber 40 mm, M 10 x 1 ET, free passage Ø 4 mm | 18 x 170 mm, część dociskowa 110 mm | uszczelka dociskowa 40 mm, gwint M10x1 ET, światło Ø4 mm | Steel packer with gel-flat head nipple |
| 16 x 130 mm | pressure element 70 mm, pressure rubber 40 mm, R 1/4“ ET, free passage 4 mm, without fl at head nipple, without check valve | Steel packer | ||
| 16 x 130 mm | pressure element 70 mm, pressure rubber 40 mm, M 8 IT, free passage 2.5 mm with HP-Flat head nipple M 8, SW 12, without check valve | Steel packer with HP flat head nipple | ||
| 13 x 110 mm | pressure element 70 mm, pessure rubber 30 mm, HP conical head nipple M 6, SW 10 | część dociskowa 70 mm, uszczelka dociskowa 30 mm, końcówka stożkowa HP gwint M 6, klucz 10 | Steel packer with HP conical head nipple | |
| 10 x 160 mm | pressure element 110 mm, pressure rubber 40 mm, HP conical head nipple M 6, SW 10 | część dociskowa 110 mm, uszczelka dociskowa 40 mm, końcówka stożkowa HP gwint M6, klucz 10 | Steel packer with HP conical head nipple | |
| 22 x 300 mm | pressure rubber 70 mm, outer thread M 10 x 1, free passage Ø 6 mm, SW 17 | uszczelka dociskowa 70 mm, gwint zewn. M10x1, światło Ø6 mm, klucz 17 | Steel packer | |
| 13 x 120 mm | with conical head nipple, pressure element 70 mm, pressure rubber 40 mm, HP-conical head nipple M 6, check valve | z końcówką stożkową, element dociskowy 70 mm, uszczelka gumowa 40 mm, stożkowa końcówka HP M6, zawór zwrotny | 1 Day packer | |
| 25 x 200 mm | outer thread G 1/4“, free passage Ø 8 mm, for Ram grouting lance, connection Thread G 3/8“ | gwint zewnętrzny G 1/4“, światło Ø 8 mm, do lanc iniekcyjnych RAM złączka G 3/8“ | Steel packer | |
| 18 x 170 mm | outer thread M 10 x 1, Ø 18 x 170 mm, free passage Ø 6 mm, Sleeve G 1/4“ IT as connection thread for Ram grouting lances | Gwint zewnętrzny M10x1, Ø 18 x 170 mm, światło Ø 6 mm, tuleja z gwintem wewn. G 1/4" jako przyłącze do lanc iniekcyjnych Ram | Steel packer |
