WILLPUR® WS-L

Fast reacting, dual-component polyurethane resin with short reaction time even at low temperatures



description

WILLPUR® WS-L is a hard-elastic polyurethane resin. It cures to a dimensionally stable injection material suitable for stopping water inflows or consolidating soil and loose rock. Its low viscosity allows good penetration, allowing WILLPUR® WS-L to get into the tightest fissures, ensuring permanent consolidation. Although it is not a high foaming product, in contact with water or even just moisture, it fills smaller fissures and cracks, with the effect of secure sealing even against higher water pressure.



details

Properties:

  • extremely fast reacting PU resin with short reaction time and high final strength
  • foams easily on contact with water
  • adaptable injection system with the addition of WILLADD® THIX and WILLADD® FAST
  • in combination with the above additives it reacts as an expanding, foaming waterstop system

Application:

  • Consolidation in dry, wet and water-bearing layers in rock or cracks in concrete.
  • Sealing against water under pressure from rock layers, dams or shaft walls
  • Stabilization, repair and sealing work in tunnels, shafts and excavations
  • Stabilization and waterproofing in sheet pile walls as well as in anchorages."



Technical DATA

Curing time at 15°C [s]:41
Foam Factor (1% water):4
Volumetric mixing ratio A:B:1:1
TDS & MSDS on request



PACKAGING FORM

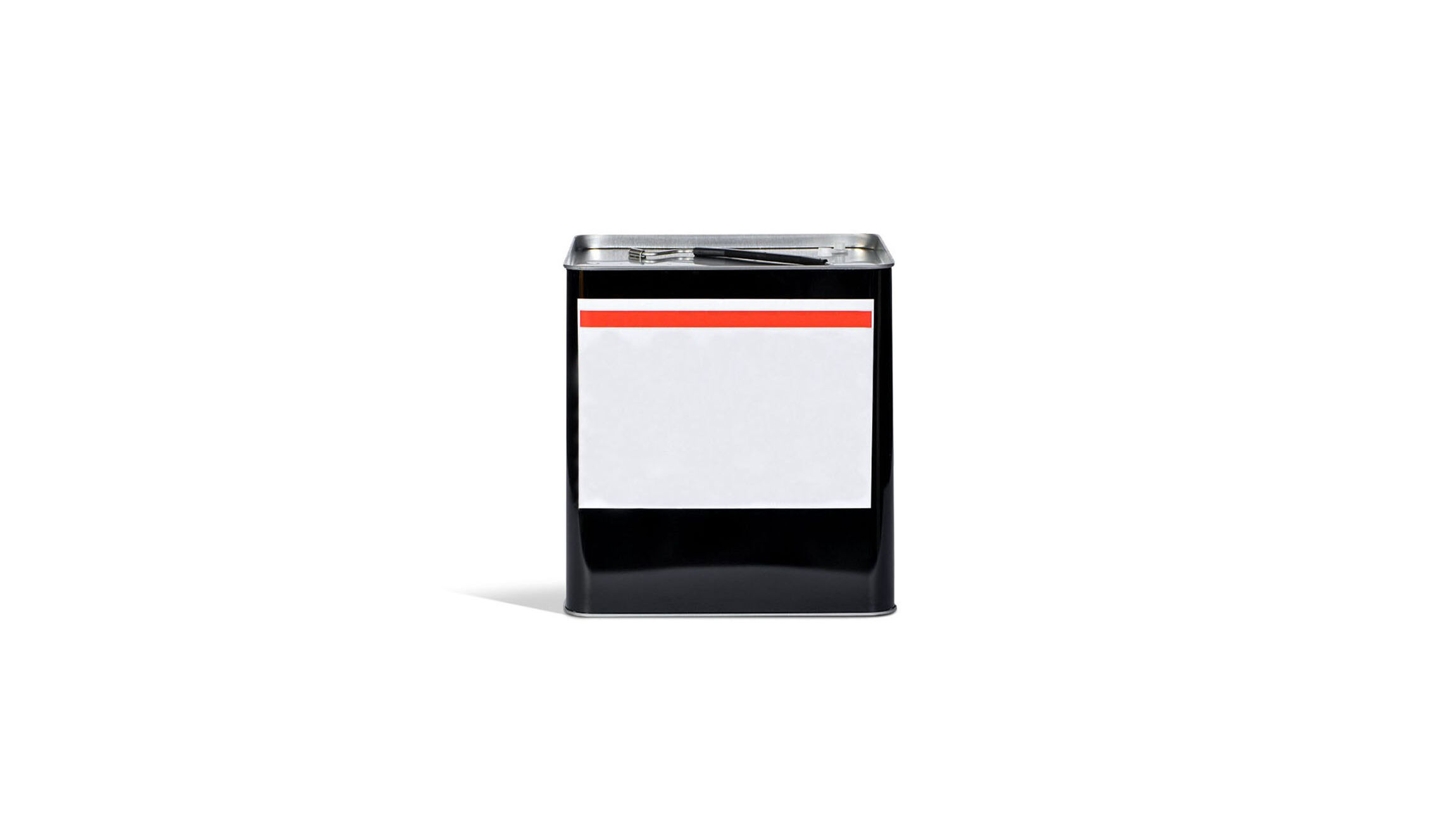

Tin Canisters 20lComponent A: 18 kg
Component B: 23 kg
Steel Drum 200lComponent A: 200 kg
Component B: 250 kg
Other delivery forms on request
